Overview

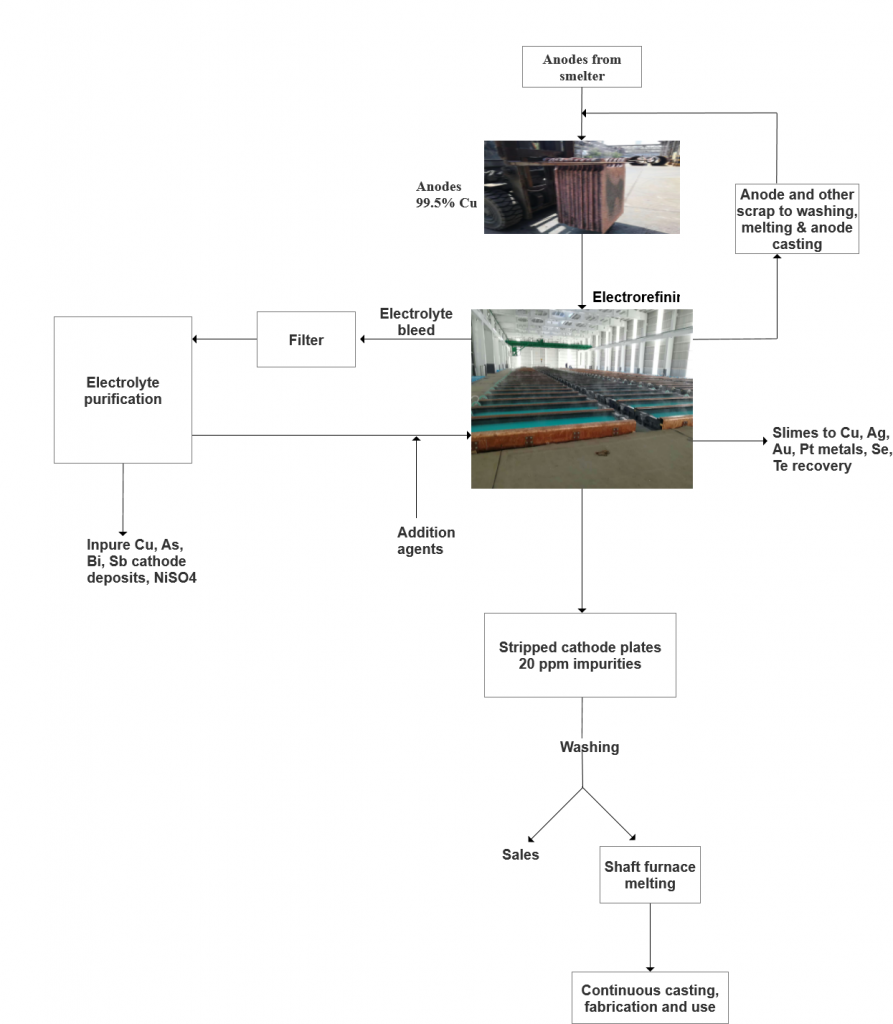

Electrolytic refining process is used to produce high-purity copper from impure copper anodes. The process involves electrochemical dissolution of copper from anodes and selective electroplating of pure copper onto cathodes.

Electrolytic Cell Setup

— The process takes place in an electrolytic cell filled with an electrolyte solution containing CuSO₄ (copper sulfate) and H₂SO₄ (sulfuric acid).

— Copper anodes (impure copper) and cathodes (usually made of stainless steel) are immersed in the electrolyte, with a typical anode-cathode distance of approximately 50 mm.

Electrochemical Reactions

–— Anode Reaction: Copper from the anode is electrochemically oxidized and dissolves into the electrolyte as Cu²⁺ ions, releasing electrons:

Cu (anode) → Cu²⁺ (in electrolyte) + 2e^–

–— Cathode Reaction: Copper ions in the electrolyte are reduced and plated onto the cathode as pure copper, using the electrons supplied through an external circuit:

Cu²⁺ (in electrolyte) + 2e^– → Cu (cathode)

Impurity Management

— Insoluble impurities in the anode, such as gold, silver, and platinum group metals, form a slime layer that adheres to the anode or falls to the bottom of the cell.

— Soluble impurities like arsenic (As), antimony (Sb), bismuth (Bi), iron (Fe), nickel (Ni), and sulfur (S) are continuously removed from the electrolyte through a bleed stream to prevent contamination of the cathode copper.

Electrolyte Management

— The electrolyte is heated to 60-65°C to improve its electrical conductivity and mass transfer.

— It is continuously circulated at a rate of approximately 1.2 m³/h to ensure uniform concentrations of Cu²⁺ ions and additives across all cathode surfaces.

Additive Agents

–— Leveling Agents: Protein colloids (e.g., bone glue) are added to promote the deposition of a smooth, dense copper layer on the cathode.

–— Grain-Refining Agents: Thiourea and chloride ions are used to refine the grain structure of the deposited copper, leading to a high-quality cathode surface.

Operational Parameters

— The applied cell voltage is typically around 0.3 V, which includes overvoltages for copper plating on the cathode and dissolution from the anode.

— Current density, measured in amperes per square meter (A/m²), is a critical parameter that affects the rate of copper deposition and the quality of the cathode.

Cathode Production

— Stainless steel blanks serve as the starting cathodes onto which copper is electrodeposited for 7-10 days.

— Once the copper has been deposited, the cathodes are removed, washed, and the copper deposits are stripped off the stainless steel for further processing or shipping.

Anode Preparation

— Impure copper anodes are cast with a typical purity of 98.5-99.5% Cu and are prepared to ensure uniform dissolution during the refining process.

— Anode scrap, once removed from the cell, is washed, dried, remelted, and recast into new anodes.

Environmental and Energy Considerations

— Energy consumption is minimized through efficient electrolyte heating, cell insulation, and energy-efficient melting of anode scrap.

— Byproduct metals are recovered from the slimes for economic and environmental benefits.

Monitoring and Control

— The refining process is monitored using infrared scanners, gauss meters, and cell voltage monitoring systems to detect and rectify short circuits and ensure optimal operation.

— Online measurement systems are employed for real-time monitoring of electrolyte parameters such as temperature, voltage, and additive concentrations.

Recent Developments and Trends

— There is a trend towards increased adoption of polymer concrete cells and permanent cathode systems, especially in regions with high labor costs.

— Automation, robotics, and advanced process control technologies are becoming standard in the industry to improve efficiency, safety, and productivity.

— Efforts are being made to treat anodes with more complex impurity profiles at higher current densities while maintaining high cathode purity.
